Equipment assembly archive
A look at the assembly floor and equipment in production. Archive footage does not establish current inventory or individual unit testing.
Industrial atmospheric water generator
AquaAloha A5000
The A5000 blue-cabinet configuration provides an industrial capacity reference for larger daily water needs. Compare the output at three climate conditions, equipment footprint and electrical requirements before planning an installation.
Recommendation by inquiryOperating fit, configuration, and availability are confirmed before a proposal.
5,000 L/day referenceProduct display prepared from a supplied equipment view. Confirm the final configuration and engineering details.Videos & operating references
Explore the model references.
Product facts
What to know before you choose.
- Rated output at 30°C / 80% RH
- 5,000 L per 24 hours
- Input power
- 46 kW (46,000 W)
- Dimensions / net weight
- 4377 × 1796 × 2207 mm (L × W × H) / 3,300 kg
- Output reference at 27°C / 60% RH
- 3,000 L per 24 hours
- Output reference at 25°C / 30% RH
- 675 L per 24 hours
- Specific energy at 30°C / 80% RH
- 221 Wh/L (0.221 kWh/L), listed in the brochure
- Power supply options
- AC 380V or 460V, 50Hz or 60Hz, three-phase; match the ordered configuration
- Compressor reference
- 4 enclosed vortex compressors, as described in the brochure
- Refrigerant reference
- R410A
- Water treatment
- Air filter + PPF + GAC + PPF + RO + LED-UV
- Circulation / heat-removal fans
- 8 / 8 in the supplied specification table
- Control system
- PLC
- Standard operating temperature
- 15–45°C / 59–113°F; other ranges require a custom configuration
- Operating humidity reference
- Above 25% RH; this is an operating limit, not a rated-output condition
- Configuration
- Blue-cabinet brochure reference; final equipment and availability confirmed by inquiry
Product views
See the equipment clearly.

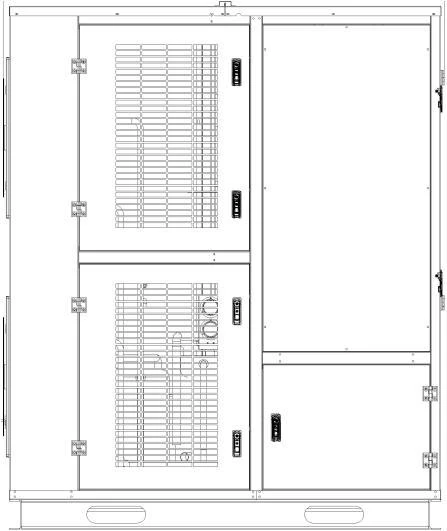

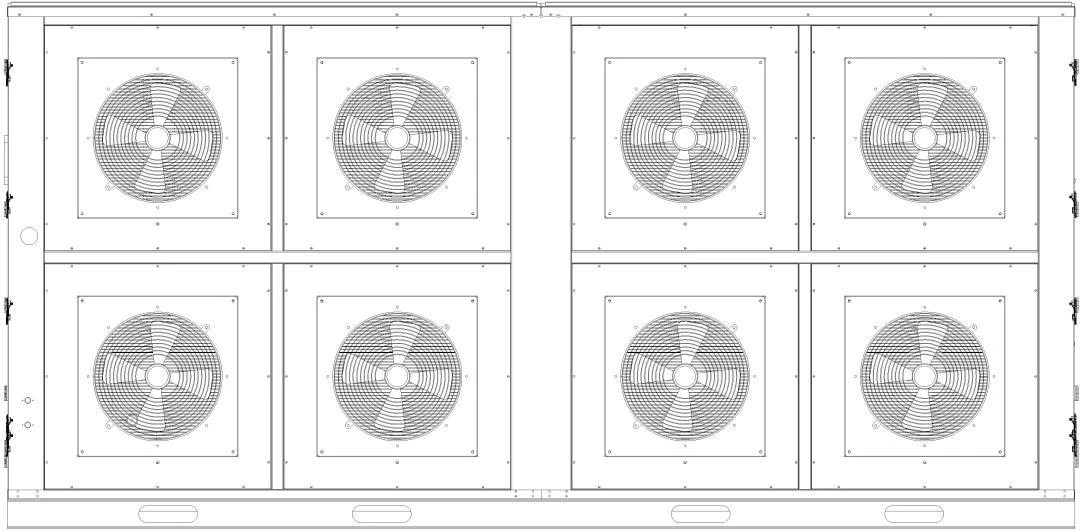

Front and side engineering views extracted from the supplied brochure. Confirm final dimensions and installation drawings for the ordered configuration.
Core features
Built around practical use.
- PLC control
- RO and LED-UV treatment reference
- Modular capacity planning
- Remote-monitoring option described in the supplied brochure
Good fit for
Where this model makes sense.
- Commercial water projects
- Shared facilities
- Remote sites with suitable power
- Larger water-demand planning
Operating notes
Set realistic expectations.
- The three output values are brochure references, not measured results for a Hawaii installation.
- These blue-cabinet specifications differ from the earlier silver-cabinet commercial range. Match every parameter to the chosen configuration.
- Dimensions and net weight describe the machine. Freight quotations require packed dimensions and gross weight.
- Confirm site voltage, frequency, phase, ventilation, water storage, installation and the service plan before ordering.
